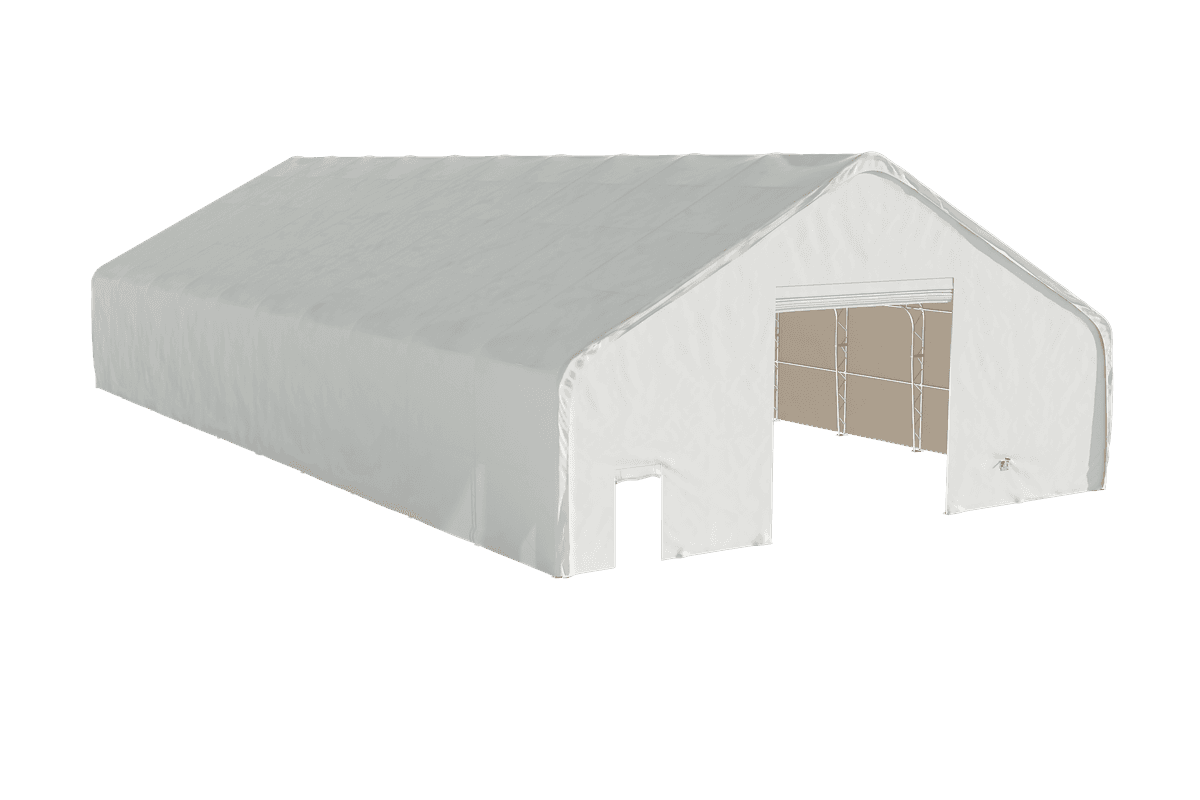

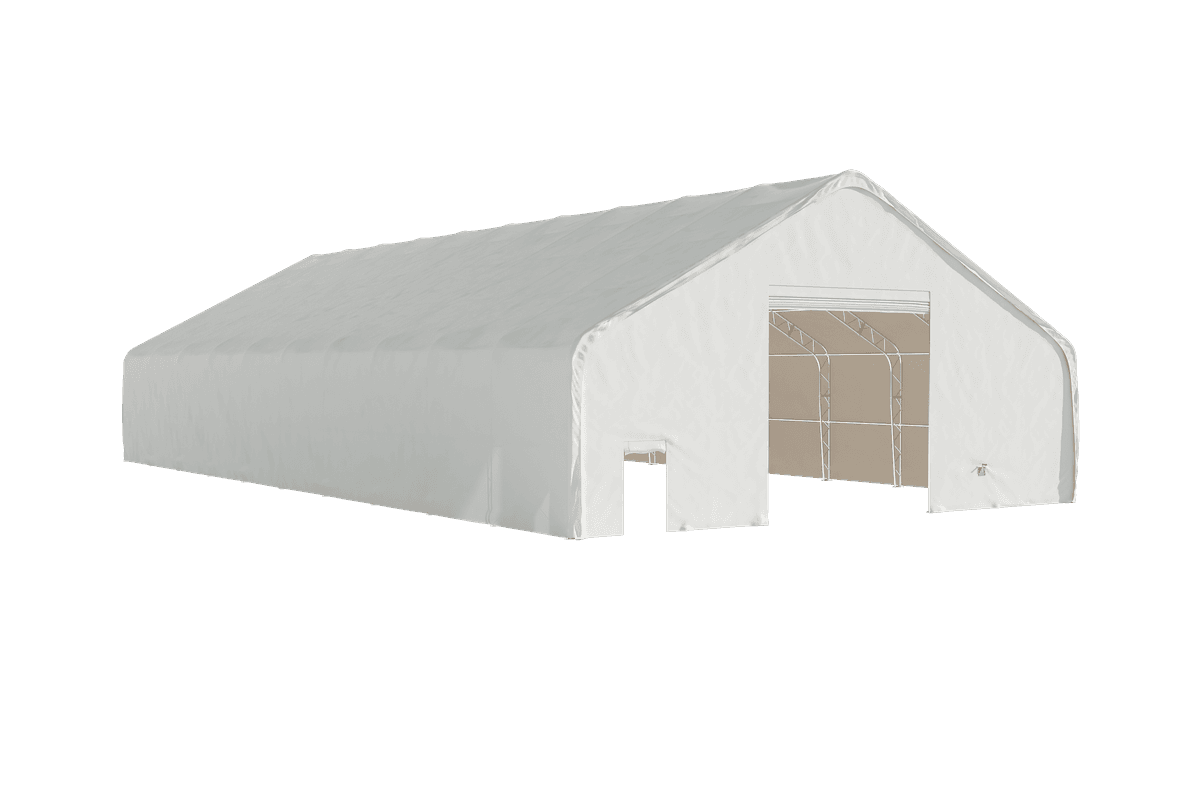

Value Industrial Double Trussed Storage Shelter - 50' wide x 100' length x 26' height

Measuring W50' x L100' x H26', offers a spacious and sturdy solution for storage needs. With its robust double-truss design, it ensures exceptional stability and durability. Ideal for industrial or agricultural applications, it provides ample space to safeguard equipment, machinery, vehicles, and other assets from the elements.


• Frame Work: Straight Wall Peak Double Truss with hot-dipped galvanized steel.
• Fabric Cover: Fire retardant, Water-resistant, UV protection.

• Shelter Width: 50FT
• Shelter Length: 100FT
• Shelter Height: 26FT
• Shape: Peak / Double Truss
• Cover: 27oz(750GSM) PVC

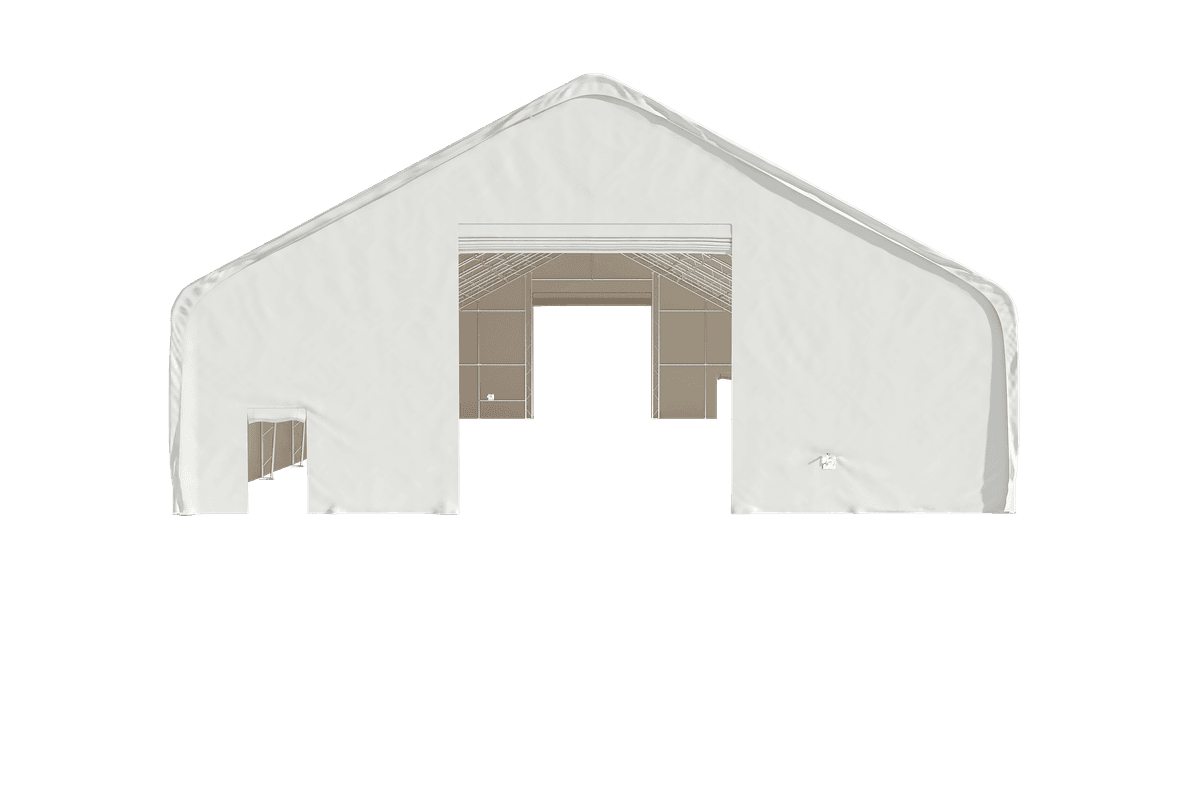

• 2 Front & Back winch/man doors on both ends
• Winch Door opening dimension: W 5m x H 5.8m
• Winch Door clearance dimension: W 5m x H 5.3m
• Man Door dimension: W 1m x H 1.9m
• Eave height: 3.97m

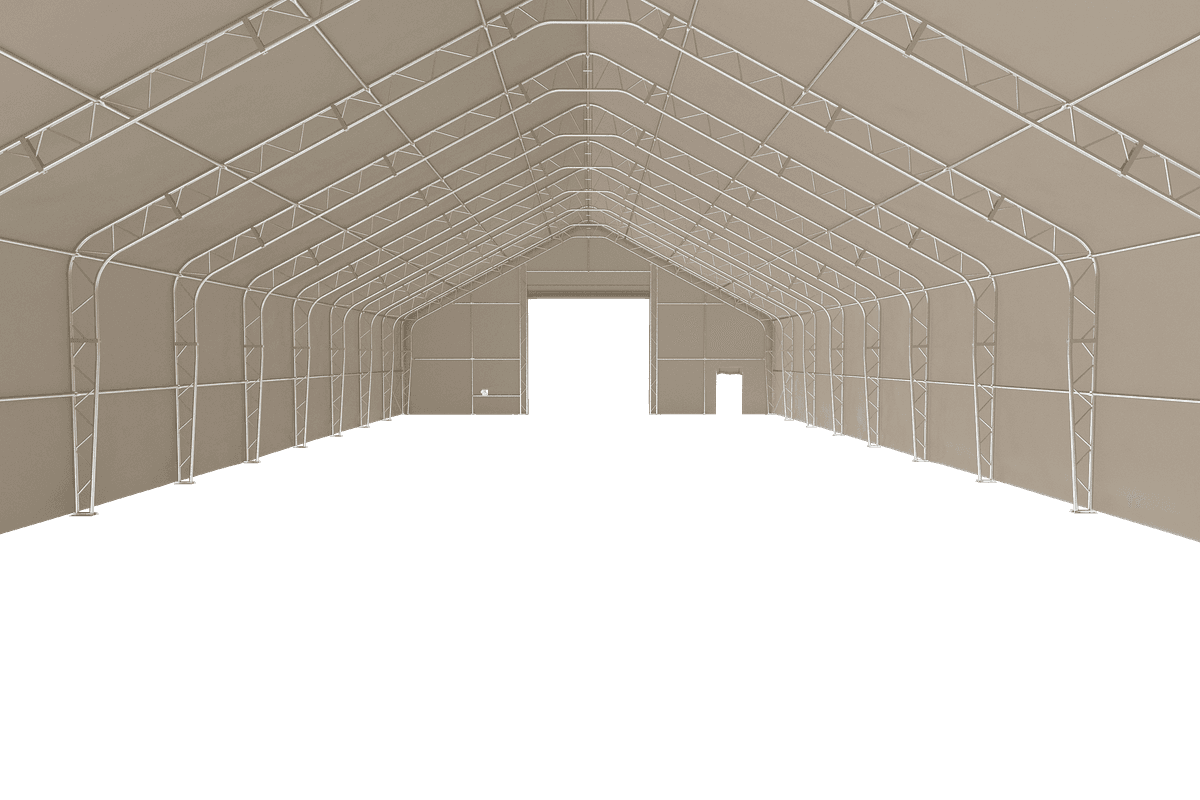

• Number of trusses: 11
• Approximate truss spacing: 10FT (3.05m)
• Number of large anchor plates: 22
• Ventilation windows on both ends

• Box 1: 110″(L) * 43″(W) * 49″(H)
• Box 2: 110″(L) * 43″(W) * 49″(H)
• Box 3: 115″(L) * 43″(W) * 49″(H)
• Box 4: 124″(L) * 43″(W) * 49″(H)
• Box 5: 124″(L) * 43″(W) * 19″(H)

• Box 1: 2625 lbs
• Box 2: 1978 lbs
• Box 3: 2262 lbs
• Box 4: 3518 lbs
• Box 5: 887 lbs

• Concrete spread footings/padding
• Poured-in-place concrete walls
• Precast concrete walls
• Lock blocks
• Sea Containers
